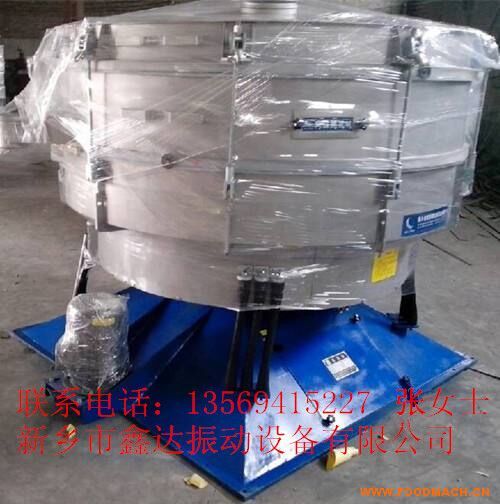

S49系列旋振筛产品概述：

    S49系列旋振筛的基本原理是利用电机轴上下安装的重锤（不平衡重锤），将电机的旋转运动转变为水平、垂直、倾斜的三次元运动，再把这个运动传递给筛面，使物料在筛面上做外扩渐开线运动，故该系列振动筛称之为旋振动筛。旋振筛具有物料运行的轨迹长，筛面利用率高等优点，调节上、下两端重锤的相位角，可改变物料在筛面上的运动轨迹.可以对物料进行精筛分、概率筛分等。

S49系列旋振筛技术参数简表：

物　　料                  工作方式                      网筛（目/寸）                   处理量（公斤/小时）

   奶粉                       干式                             16.20                                   2000


   砂糖                       干式                              4.20                                    5000

中药 农药                  干式                          80 100 150                               1400

电玉粉 树脂DV           干式                           40 60 80                                  1000

研磨粉料                   干式                           40 60 250                                 1200

颜料粉末                  干式                                20                                       4000

铁粉                        干式                            60 80 120                                2500

铜粉                        干式                                80                                       2000

石铜粉                    干式                             40 65 200                                2000

铝银粉                    干式                                  60                                      1500

淀粉                       干式                                  80                                      1200

稀有金属粉              干式                          100 1500 200                              1200

活性炭                    干式                                40 60                                   1000

涂料                       湿式                                 100                                     7500

陷次浆                    湿式                                 120                                     6000

食品加工废水           湿式                                  20                                      3500

造纸白土泥浆           湿式                                 150                                     3500

棕糖除甘蔗纤维        湿式                                 150                                     6000

铸造型砂                 干式                                  8                                       10000


注:三次元振动筛分过滤机又名三次元振动筛、旋振筛，根据用户需求不同可以分为闸门式旋振筛、加缘式 旋振筛，制作材料多为不锈钢以及碳钢。
