产品关键词：成都初效空气过滤器 成都中效空气过滤器 成都高效空气过滤器
- 产品名称： 成都初效空气过滤器|成都中效空气过滤器|成都高效空气过滤器
- 产品编号：
- 产品商标：成净高科净化
- 产品规格：595*595
- 参考价格：面议
- 更新时间：2024/4/19 12:55:37
- 点击次数：460次

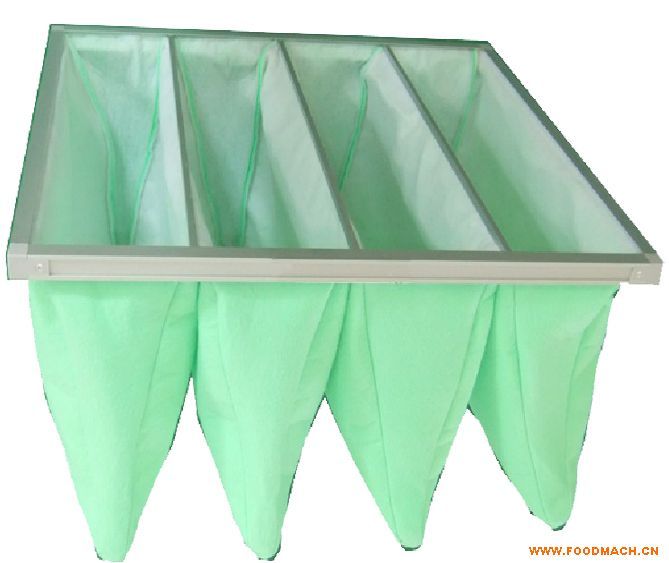

Air filter bag filter early effect
特点Features
●可重复使用多次
●阻力小、风量大
●广泛运用于空调系统的中级过滤
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system
of intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●滤料材质：新型复合无纺布
●Filter material: new composite nonwoven fabric
●滤料颜色：白色
●Liao color: white
●密封条：醋酸乙酯
●Gasket：EVA
●使用*高温度、湿度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside Dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Initial resistance(Pa) |
效率（级别） Efficiency (class) |
滤料颜色 Liao color |
袋数 pockets |
|
CJ-S10-B1 |
495×295×500mm 20″×12″×20″ |
1500m3/h |
25~35Pa |
25-35% G3 35-45% G4 |
绿白棉 |
5 |
|
CJ-S10-B2 |
495×495×500mm 20″×20″×20″ |
2500m3/h |
5 | |||
|
CJ-S10-B3 |
595×295×500mm 24″×12″×20″ |
2000m3/h |
6 | |||
|
CJ-S10-B4 |
595×495×500mm 24″×20″×20″ |
3200m3/h |
6 | |||
|
CJ-S10-B5 |
595×595×500mm 24″×24″×20″ |
3800m3/h |
8 | |||
|
CJ-S10-B6 |
495×295×600mm 20″×12″×24″ |
1800m3/h |
5 | |||
|
CJ-S10-B7 |
495×495×600mm 20″×20″×24″ |
3200m3/h |
5 | |||
|
CJ-S10-B8 |
595×295×600mm 24″×12″×24″ |
2500m3/h |
6 | |||
|
CJ-S10-B9 |
595×495×600mm 24″×20″×24″ |
4000m3/h |
6 | |||
|
CJ-S10-B10 |
595×595×600mm 24″×24″×24″ |
4500m3/h |
8 |
*可要据用户要求定制不同规格型号的过滤器
